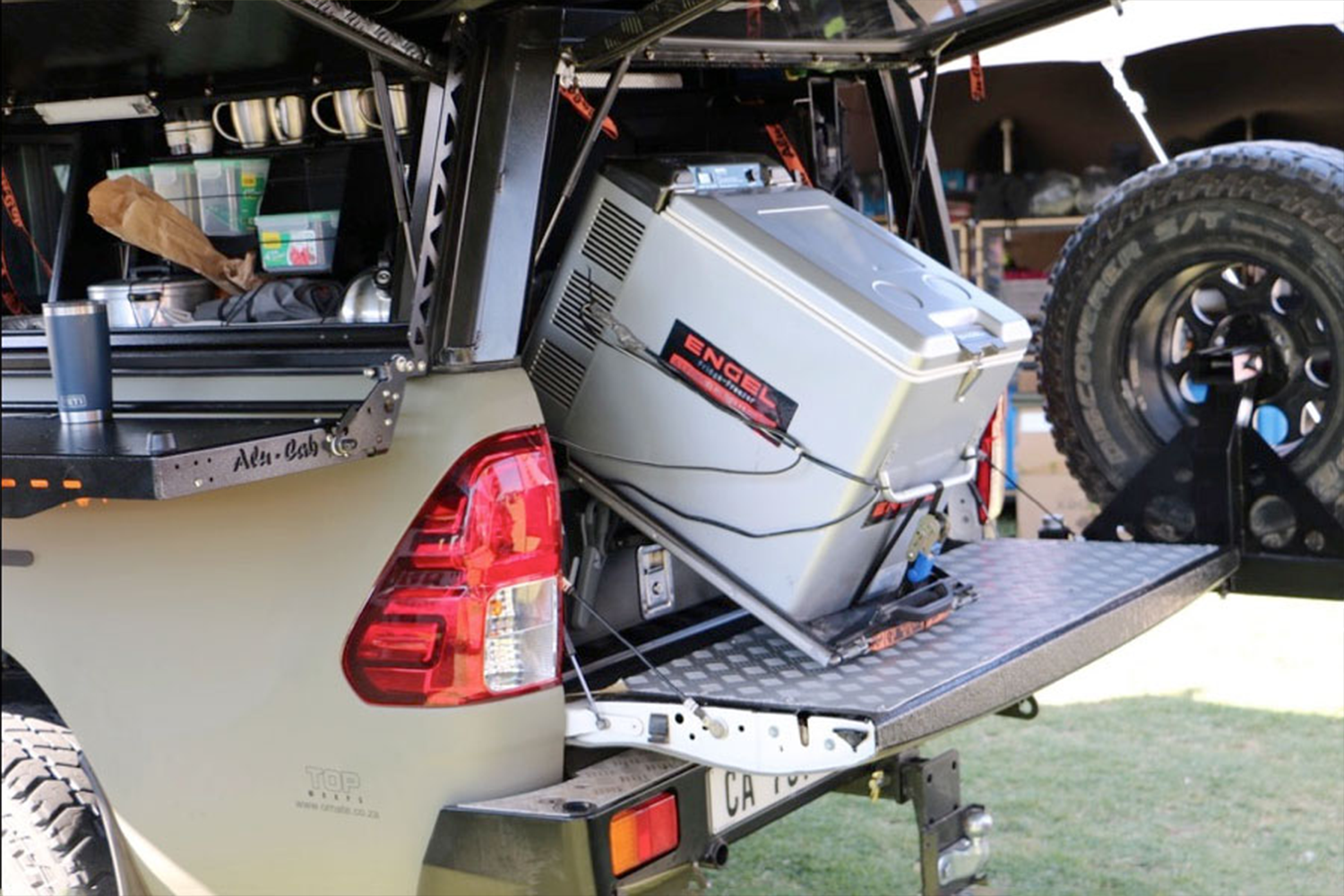

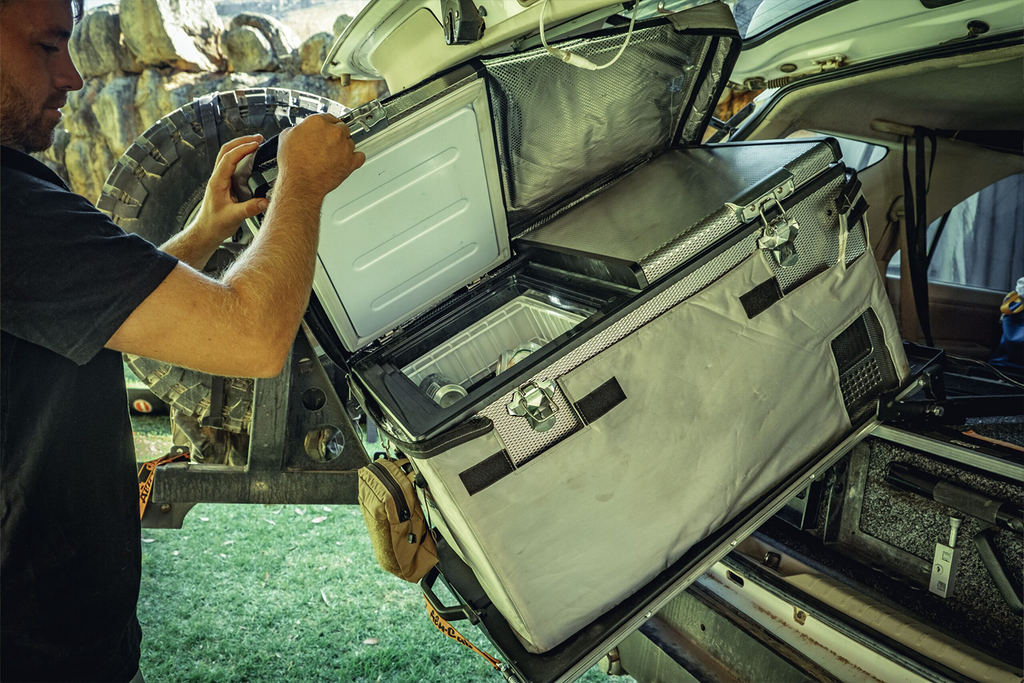

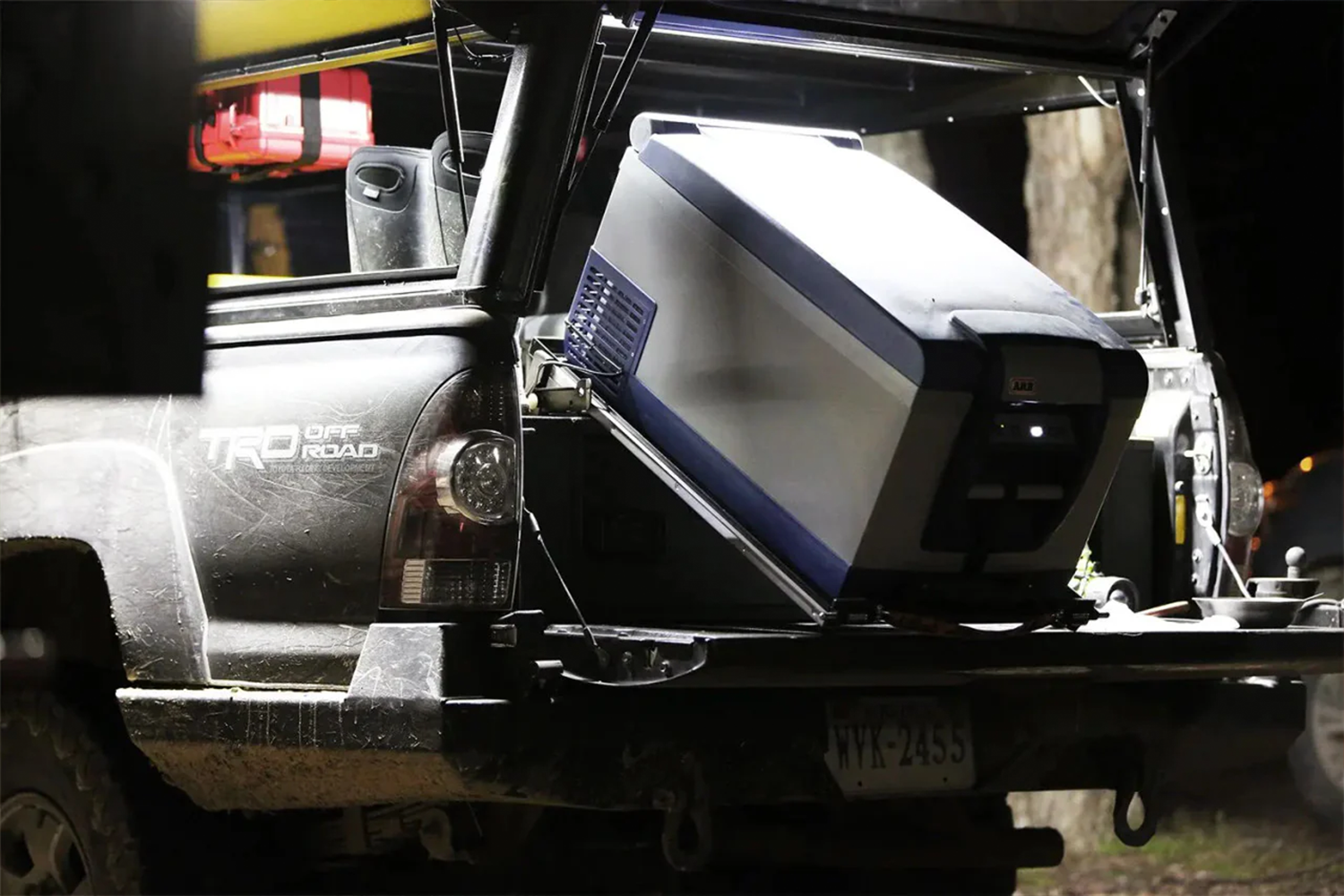

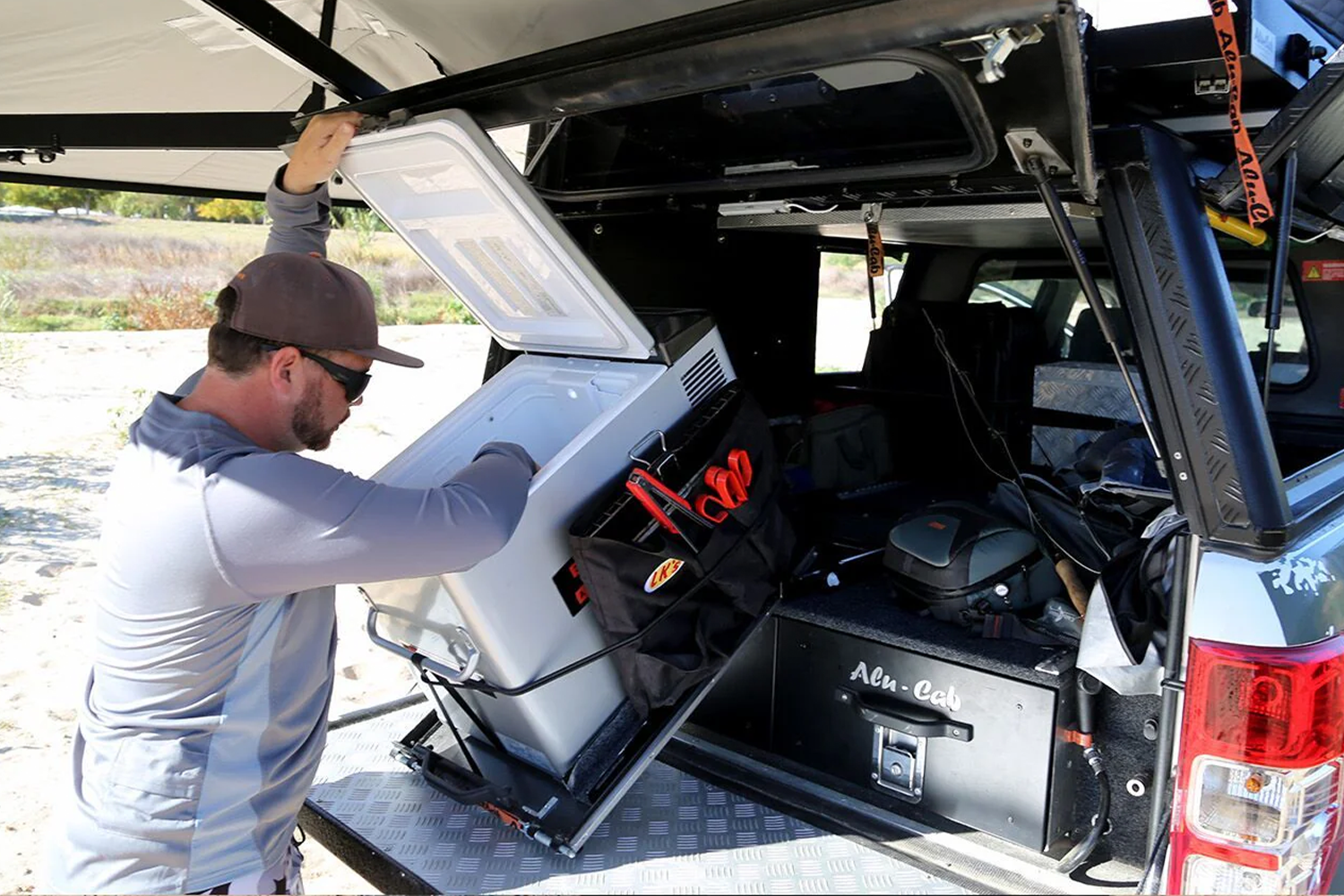

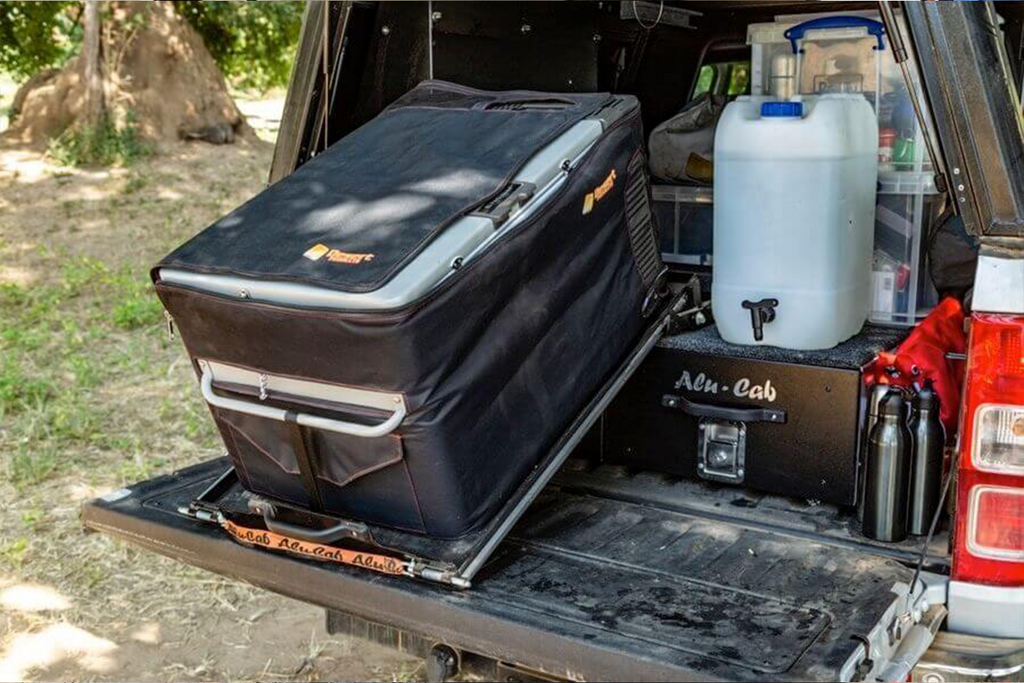

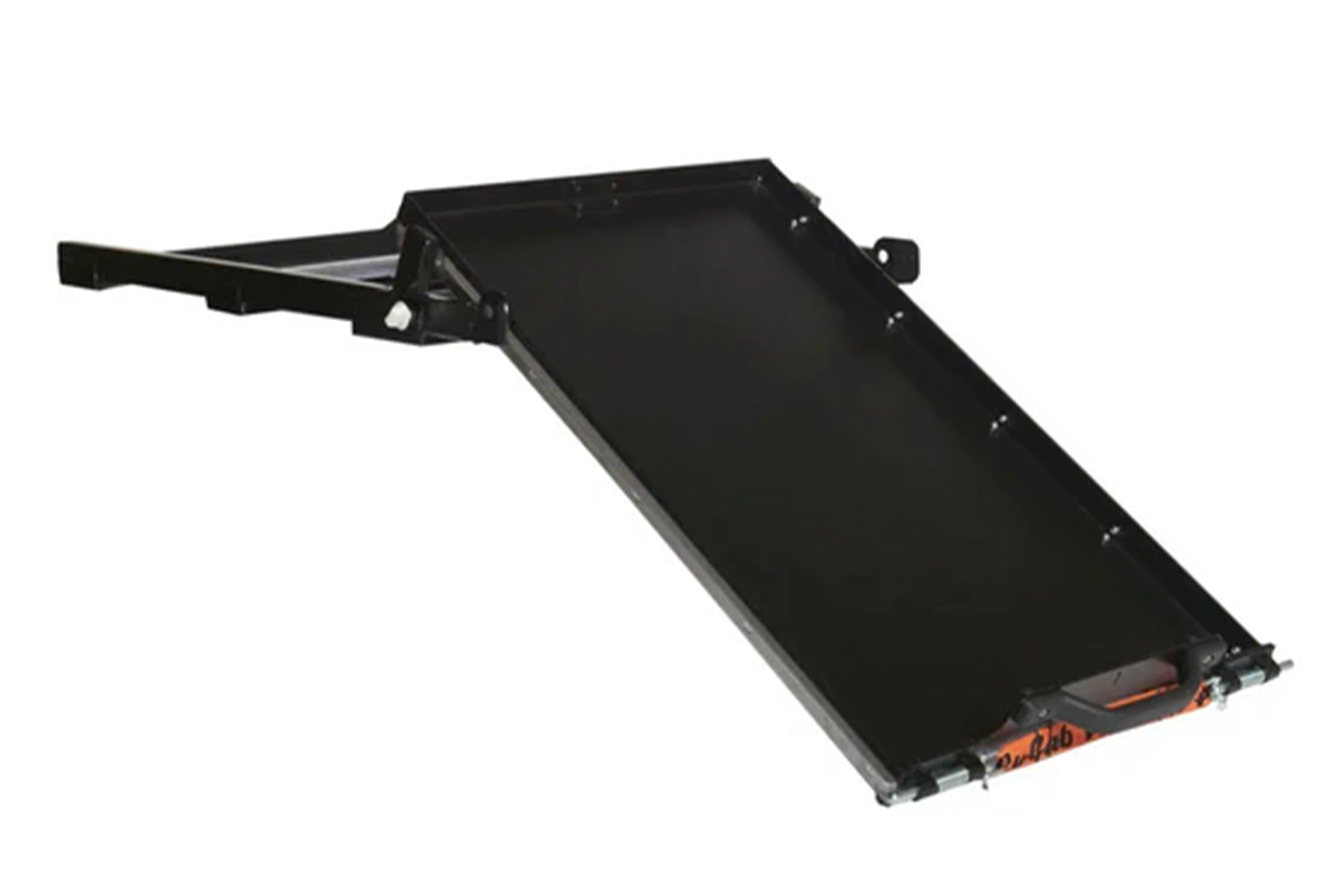

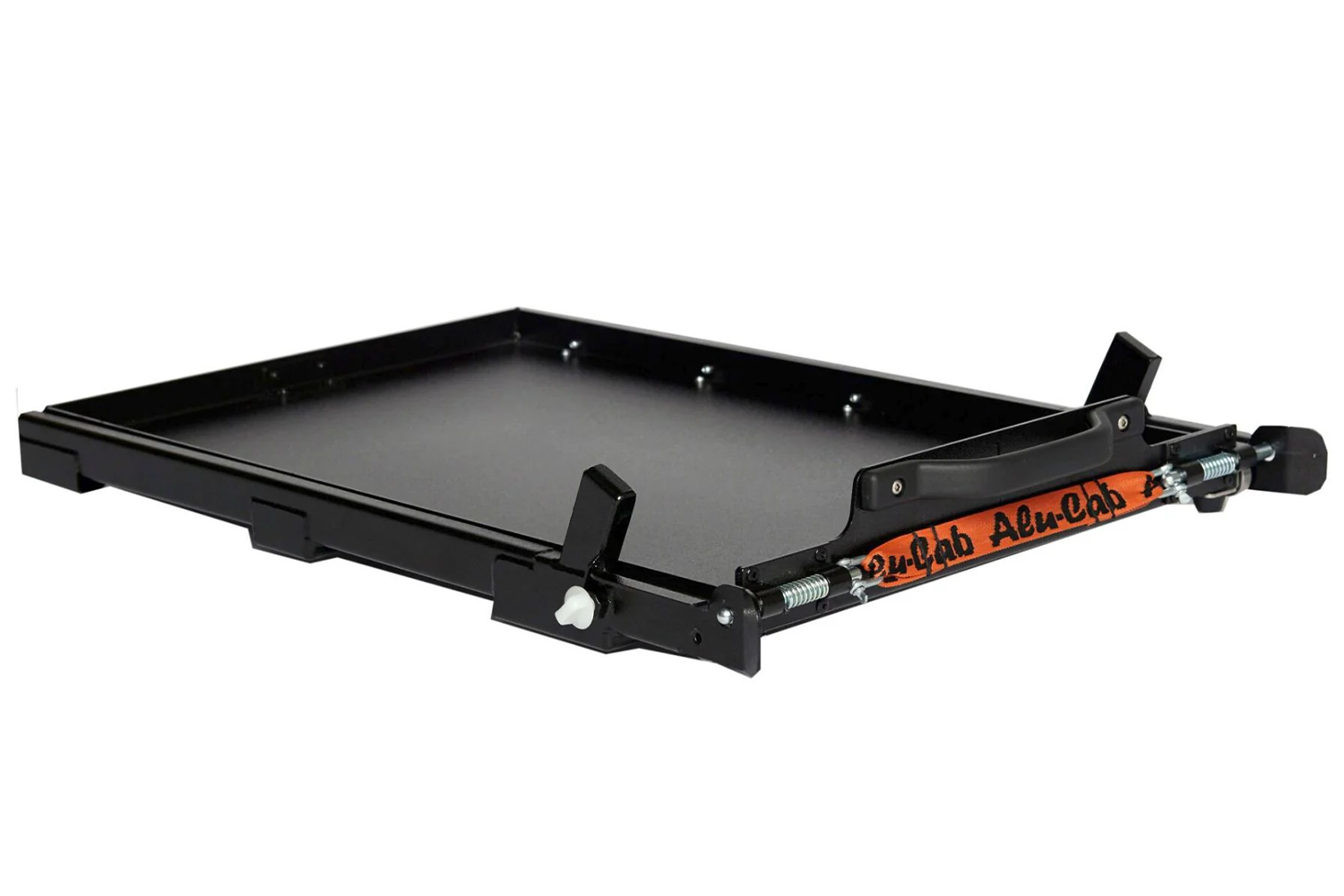

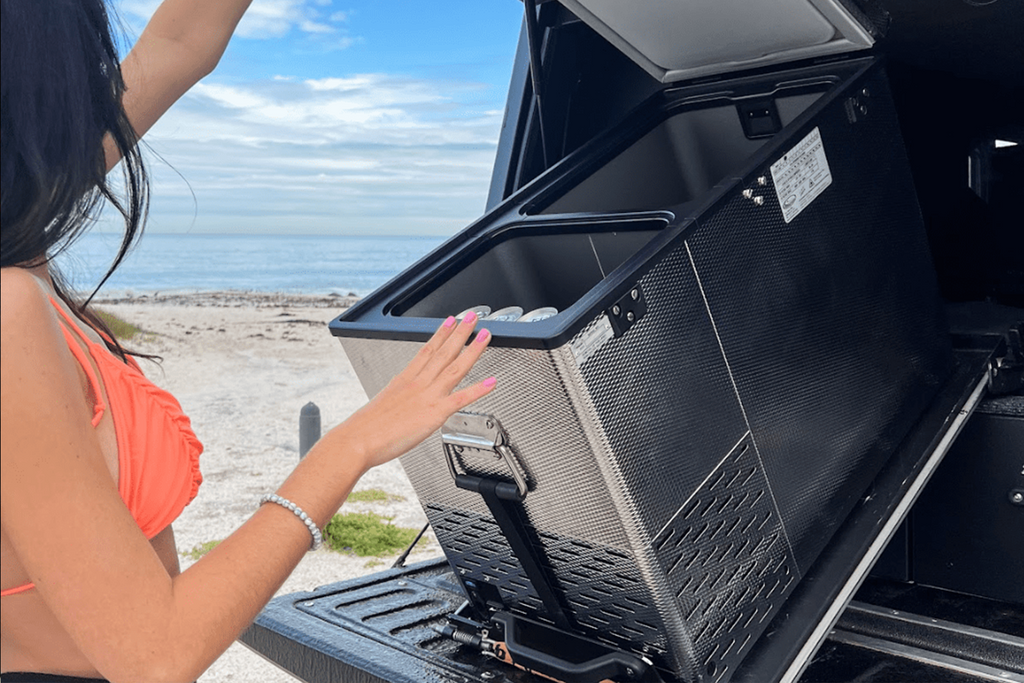

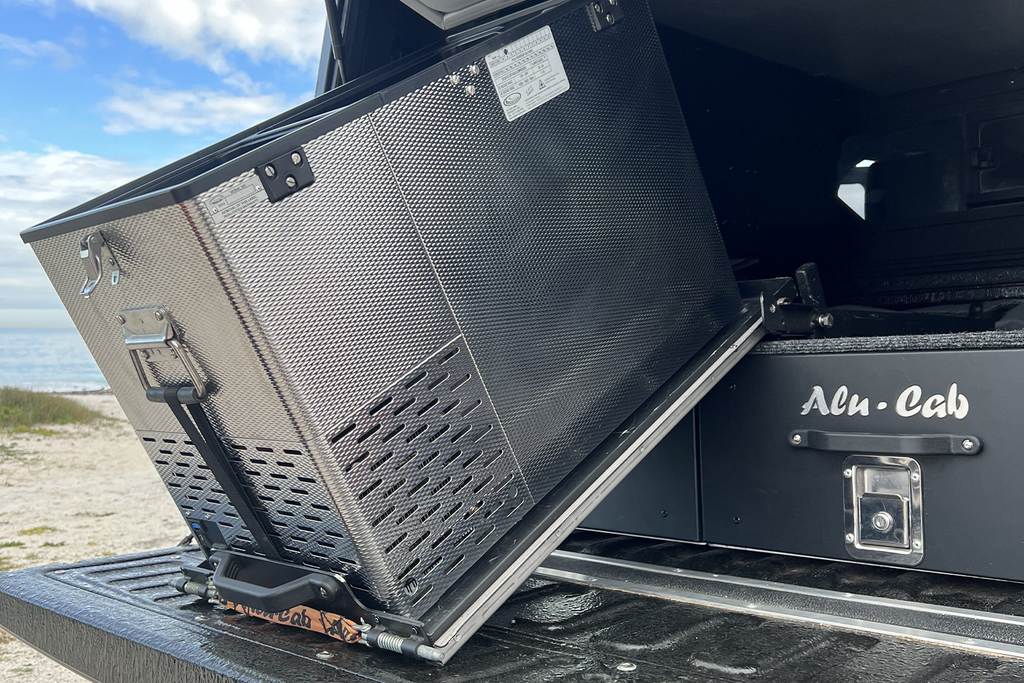

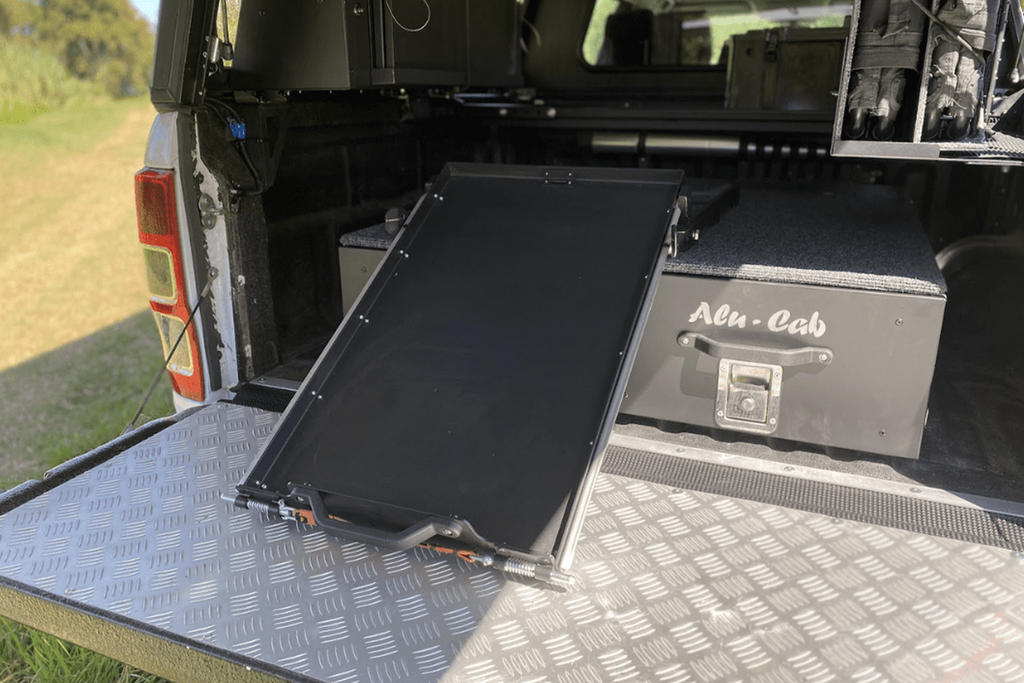

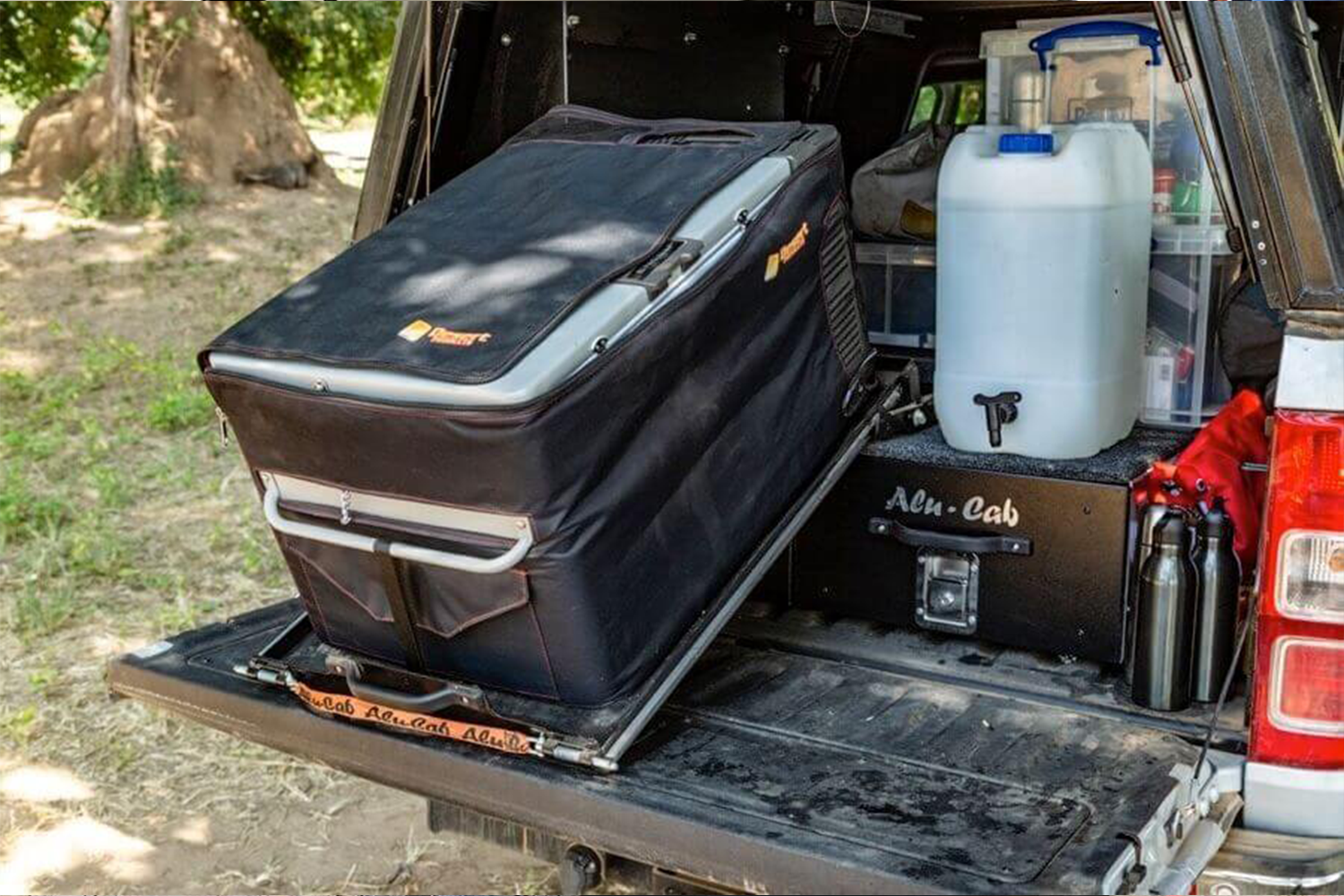

Enjoy smooth, reliable access to your fridge on every adventure with the Alu-Cab Tilting Fridge Slides. Designed for practicality and built for the toughest tracks, these slides make loading and reaching your fridge effortless — even in tight setups. Use them as a straight pull-out for everyday use or tilt them down for improved access to deep fridges.
Each unit is precision-built from a combination of 6061 aluminium and 3CR12 stainless steel, offering the ideal balance of strength, weight, and corrosion resistance. Double-locking latches ensure your fridge stays firmly in place no matter the terrain, while the tilt-stop mechanism adds safety and control.
Why Tilting Fridge Slides?
Because when you’re out on the road, accessibility and reliability matter most. With smooth one-handed operation and multiple size options, it’s the smarter way to keep your essentials within reach.
Key Features:
- Effortless pull-out and tilt operation

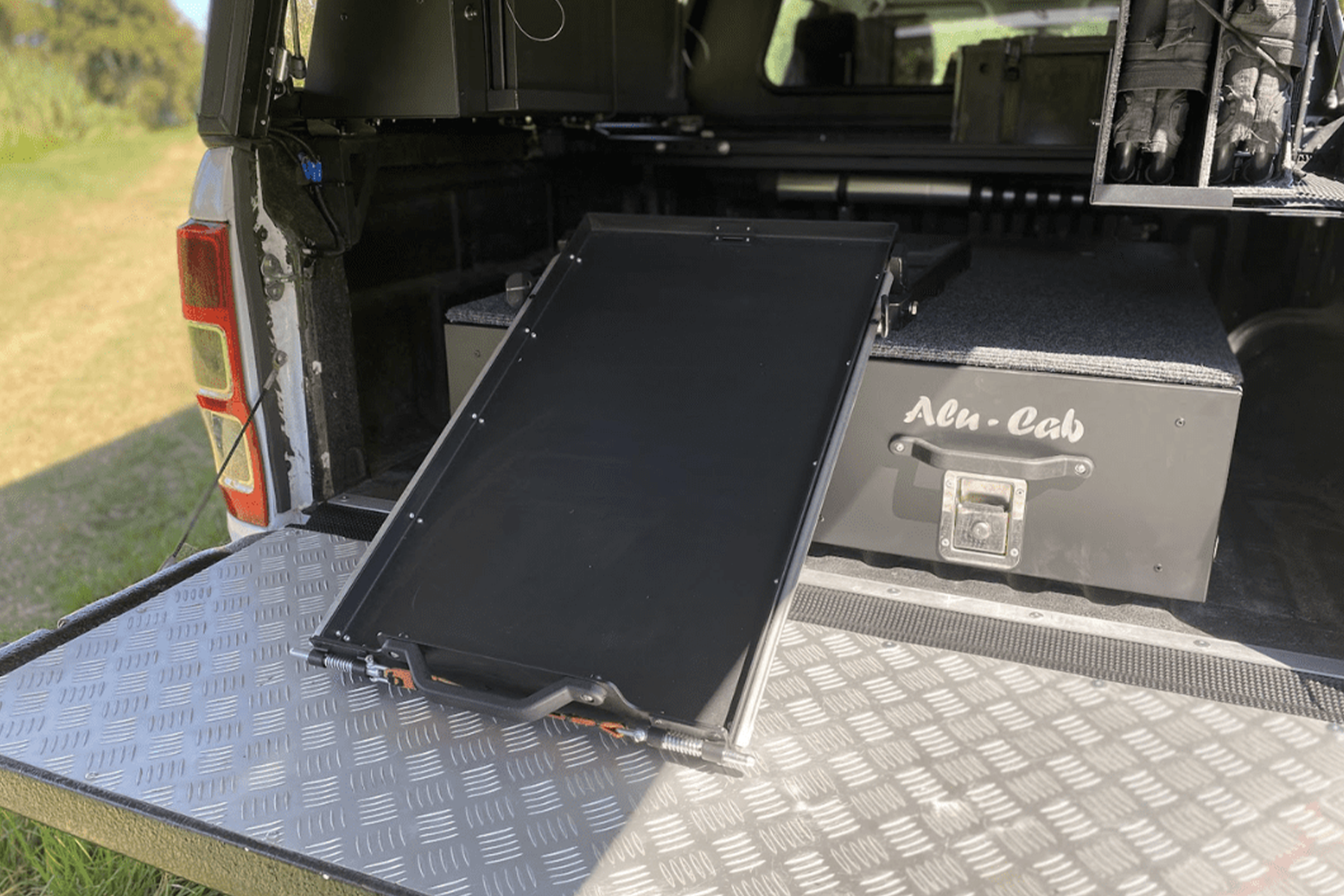

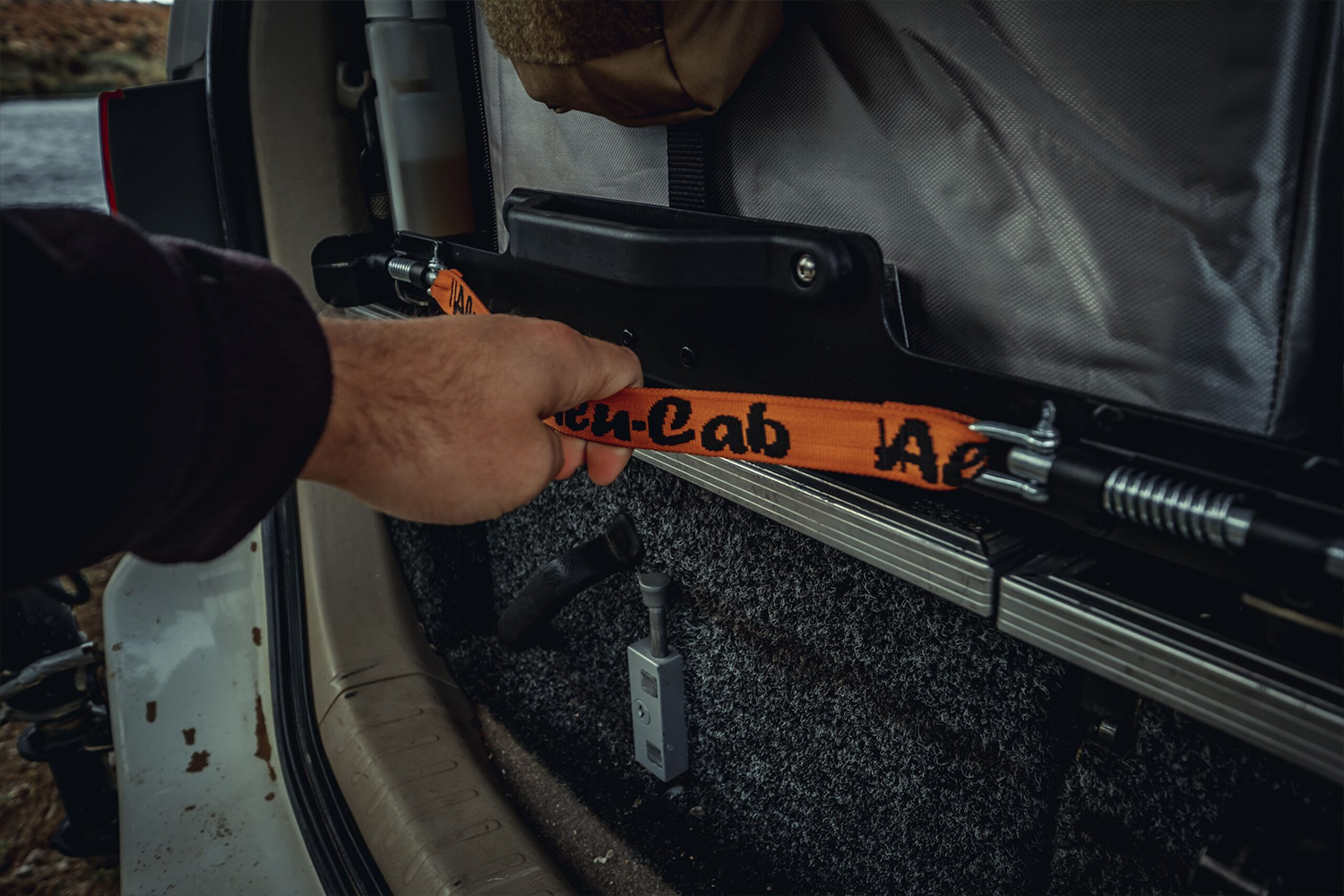

- Slots for straps to secure fridge in place

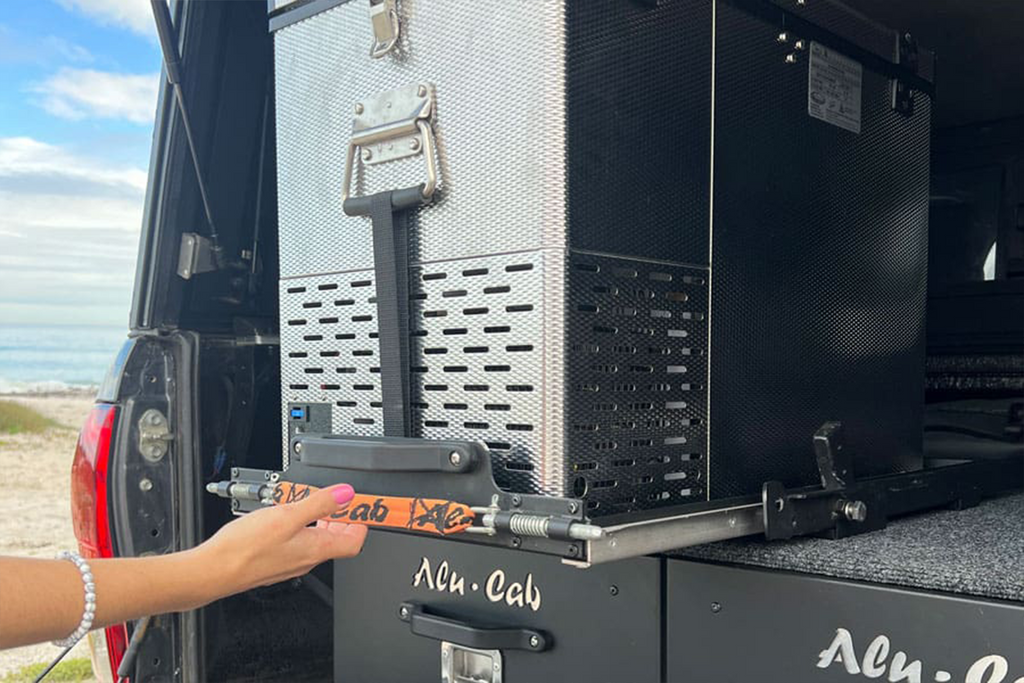

- Double-locking latches for total security
- Adjustable tilt stop for safety

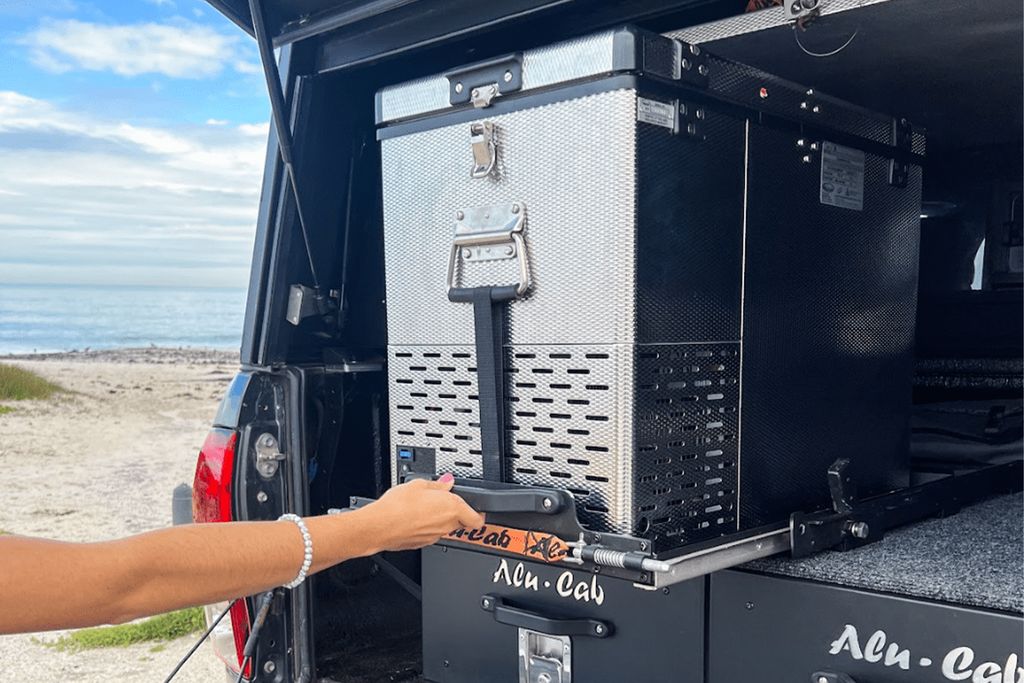

- One-handed operation for convenience
- Available in five different sizes to suit most fridges
- Constructed from 6061 aluminium and 3CR12 stainless steel for durability
Built to perform. Designed for adventure.
5 different sizes that are suitable to most fridges. Use our handy guide for reference.
Dimensions:
Tilting Fridge Slide (DS-TSF-35):
External Dimensions: 782mm [L] x 458mm [W]
Usable Dimensions: 720mm [L] x 377mm [W]
Tilting Fridge Slide (DS-TFS-50):
External: 782mm [L] x 525mm [W]
Usable: 720mm [L] x 440mm [W]
Tilting Fridge Slide (DS-TFS-60):
External: 863mm [L] x 585mm [W]
Usable: 800mm [L] x 500mm [W]
Tilting Fridge Slide (DS-TFS-80):
External: 963mm [L] x 635mm [W]
Usable: 900mm [L] x 550mm [W]
Tilting Fridge Slide (DS-TFS-95):
External: 1013mm [L] x 629mm [W]
Usable: 950mm [L] x 550mm [W]
Weight:
- DS-TSF-35 – 9.5 kg | 20.9 lbs
- DS-TFS-50 – 10 kg | 22.0 lbs
- DS-TFS-60 – 11 kg | 24.3 lbs
- DS-TFS-80 – 12 kg | 26.5 lbs
- DS-TFS-95 – 13 kg | 28.6 lbs
Product SKUs:
- 35L Fridge Slide – DS-TSF-35
- 50L Fridge Slide – DS-TSF-50
- 60L Fridge Slide – DS-TFS-60
- 80L Fridge Slide – DS-TSF-80
- 95L Fridge Slide – DS-TSF-95
